What does this symbol represent in FSM??
A state.
What does this symbol represent in FSM??
The start state.
What does this symbol represnt in FSM??
The end or accept state.
What does this symbol represent in FSM??
A transition.
What does the language recognised by a FSM consist of??
All string accepted by the finite state machine.
What is a finite state machine??
An abstract model of computation that is used to model logic.
What is an end or an accepting state??
A state which is reached when a valid string is entered.
What inputs do finite state machines accept??
A string.
In relation to FSM, what are strings made out of??
Symbols from a defined alphabet.
Do finite state machines need an end or accepting state??
No.
What would the two states for a FSM machine be for a light turning on and off at the push of a button??
- Light on
- Light off
When in the “light on” state of a FSM machine for a light turning on and off at the push of a button, what are the two transitions you can make??
- Button pressed
- Button not pressed
What is a finite state machine with output called??
A Mealy Machine.
How are transitions labelled on a mealy machine??
$$ \text{input}/\text{output} $$
What is the difference between a finite state machine and a mealy machine??
They generate an output on a state transition.
2021-01-06
What are the 4 columns for a Mealy Machine’s state transition table??
- Input
- Current state
- Output
- Next state
What is a state transition table??
A table showing what happens to each input at each state.
Explain in words the above part of a state sequence table??
A $0$ is inputed while at state $S1$. This causes an output of $1$ and the machine moves to state $S0$.
What is a common use of a Mealy Machine??
To recognise substrings.

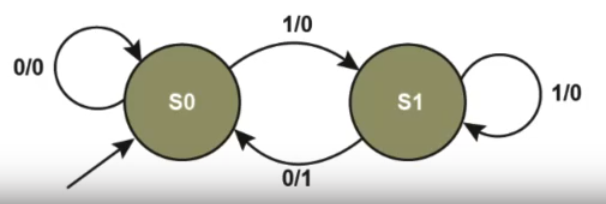

What substring does this Mealy Machine recognise??
$$ 10 $$
